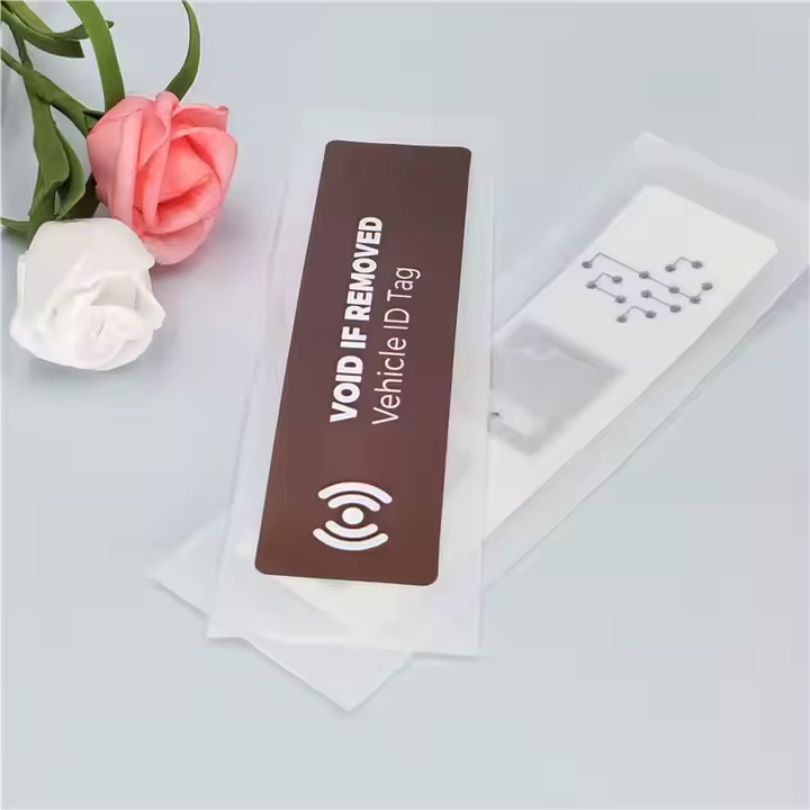

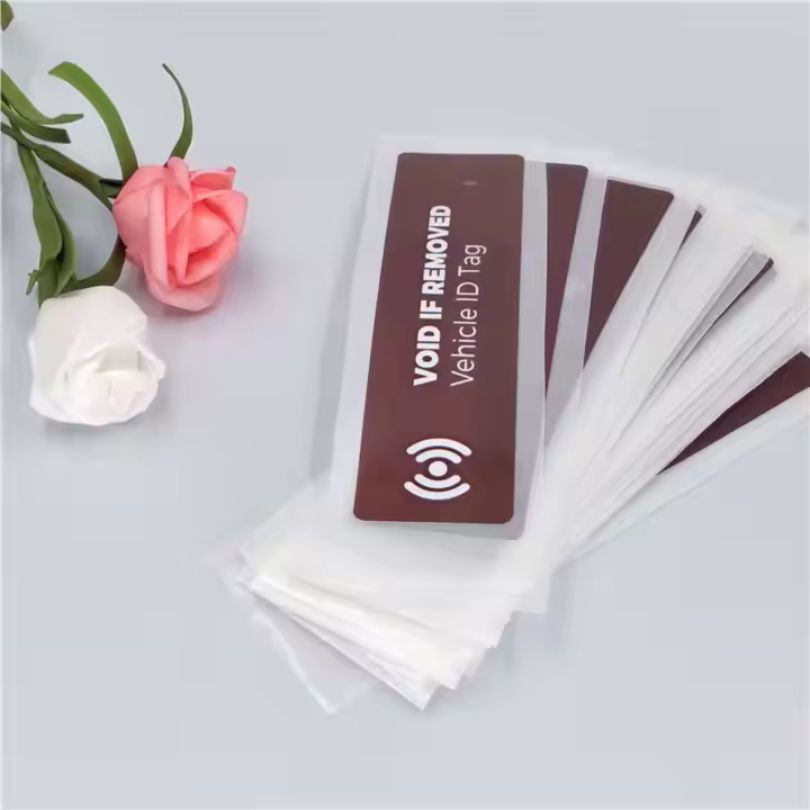

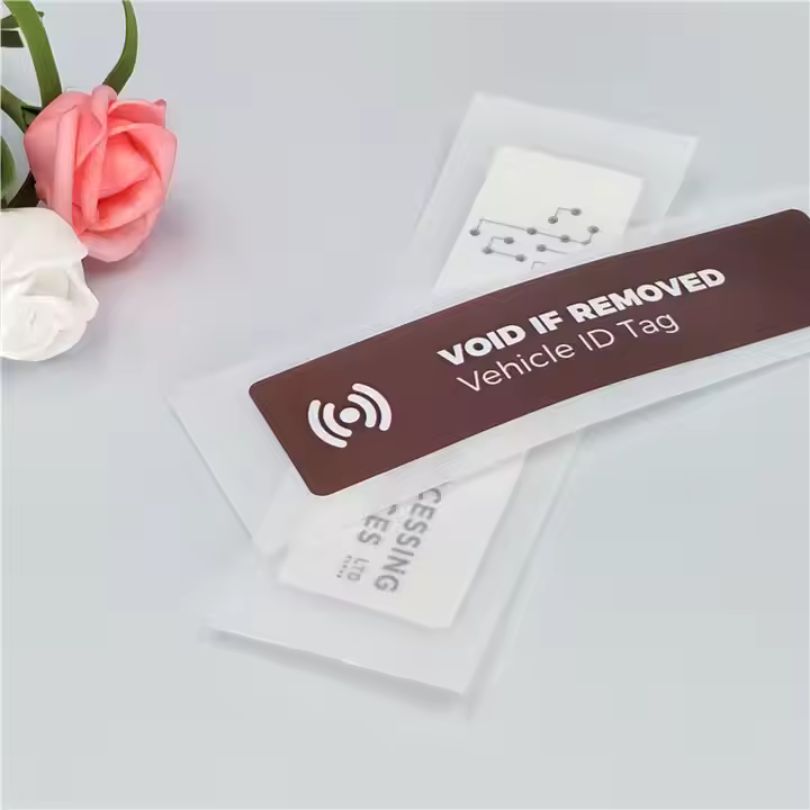

RFID Tag in Car Windshield for Access Lot Control

RFID tags generally store data in a variety of formats, depending on the tag’s capabilities. Some tags offer advanced features like file systems or designated memory areas for standardized data. While many proprietary formats are available, there are also standardized formats designed to ensure compatibility and interoperability between RFID tags, readers, and applications from different manufacturers.

RFID tags are available in a range of form factors to suit different applications, mounting methods, and durability needs. Typical form factors include:

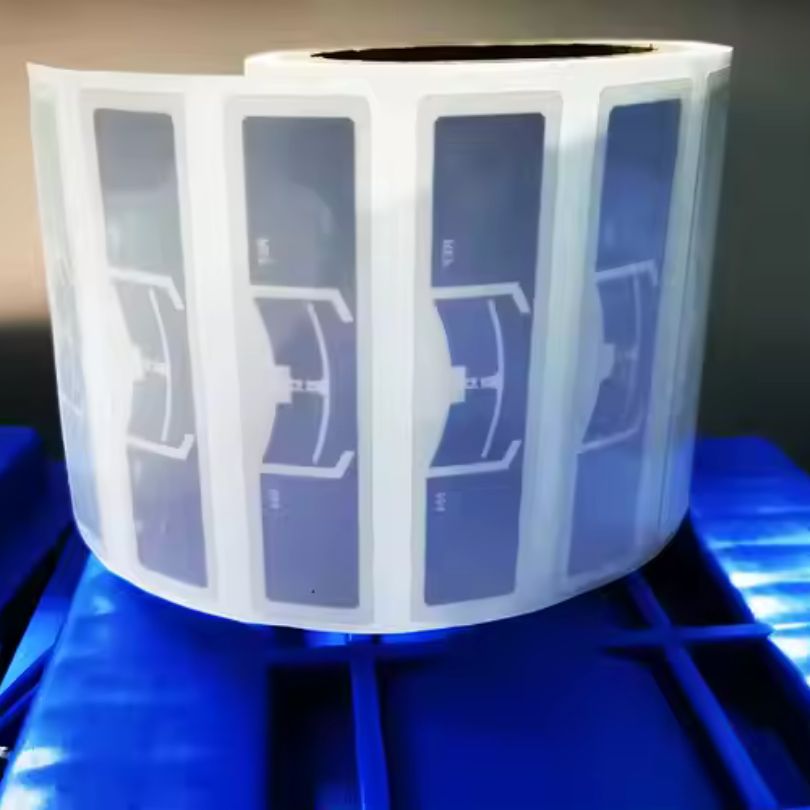

• Sticky Label or Dry Inlay: Adhesive-backed tags for easy attachment.
• Glass Capsule: Encased in a glass vial, often used for animal tracking.
• Disc: Coin-shaped tags, sometimes with a central hole.
• Rectangular Block: Often equipped with screw holes or steel rings for secure mounting.
• ISO Card: Card-shaped tags similar to standard ID cards.
• Special Form Factors: Custom designs such as tags with built-in cable ties, tamper-evident features, or key fobs.

RFID tags offer several advantages over alternative technologies such as barcodes or QR codes. Key benefits include:

• No Line of Sight Required: RFID tags can be read even when embedded or dirty, unlike barcodes which require a clear view.
• Read/Write Capability: RFID tags support both reading and writing of data, unlike read-only technologies.
• Large Memory Capacity: Tags can store substantial amounts of data, up to 32KB.
• Enhanced Security: Options for cryptographic or password-based security are available.
• Long Reading Range: UHF RFID tags can be read from several meters or feet away.
• Simultaneous Tag Reading: Multiple tags can be read at once, such as scanning an entire pallet of goods.

The reading distance of RFID tags varies based on several factors, including:

• Antenna Size: The size of the tag’s antenna affects its range.
• Tag Chip: The type of chip used in the tag can influence the distance.
• Tag Orientation: How the tag is positioned within the reader’s field impacts its readability.
• Reader Field Strength: The power of the RFID reader affects the range.
• Environmental Factors: Materials like metal or water around the tag can interfere with the signal.

Typically:

• LF, HF, and UHF Near-Field Tags: These tags generally have a reading range of about 1 foot (30 cm).
• UHF Far-Field Tags: These tags can be read from several meters or feet away, though performance can be significantly affected by environmental conditions.
• NFC Tags (HF): Designed for close-range communication, NFC tags usually have a reading distance of approximately 1 inch (2 cm) when used with smartphones or similar devices.

RFID tags are commonly used to uniquely identify physical items to which they are attached or embedded. Their applications are diverse, covering a wide range of physical objects. Key benefits of RFID tag use include:

• Enhanced Inventory Management: Increases speed and accuracy in tracking inventory.
• Reduction of Human Error: Minimizes mistakes associated with manual data entry.
• Streamlined Logistics: Optimizes the handling and workflow of items in the supply chain.
• Contactless Payment: Facilitates secure and convenient payment transactions.
• Access Control: Manages and controls access to secure areas or systems.

RFID tags are utilized whenever there is a need for quick and reliable identification of physical objects. Their applications are broad and continually expanding. Key areas where RFID tags are commonly used include:

• Animal Identification: For pets, livestock, and lab animals.
• Access Control Systems: For secure and contactless entry.
• Payments: For secure and convenient contactless transactions.
• Electronic Passports and ID Cards: For enhanced security and identification.
• Retail Logistics: To improve inventory management and tracking.
• Automation and Manufacturing: For efficient production and process control.
• Returnable Transport Items: To manage and track reusable containers.
• Commercial Laundry: For tracking and managing laundry items.
• Medical and Health Equipment: For managing medical devices and patient tracking.
• Waste Management: To track and manage waste disposal processes.

While passive RFID tags are generally maintenance-free and durable, several issues can affect their performance:

• Readability at Distance: Tags may experience reduced readability at longer distances. Environmental factors, such as the presence of metal or water near the tag, can also interfere with reading. For guidance on mounting RFID tags effectively, refer to the white paper on Adhesive Tag Fixation.

• Metal Interference: RFID tags often face reduced performance when placed near metal. Tags positioned directly on metal surfaces may not read at all. Special RFID tags designed for metal environments feature housing that creates a controlled gap between the tag antenna and the metal, or include metal foil to enhance performance near metal surfaces.

• Proximity Issues: When RFID tags are placed too close to each other, they can interfere with one another, especially with UHF tags. Adhering to minimum spacing guidelines for each tag type is crucial for optimal performance.

• Water and Moisture Impact: While most RFID tags are physically resistant to water, moisture can significantly reduce their read range. High-frequency (HF) and ultra-high-frequency (UHF) tags are particularly affected by moisture, with UHF tags showing a marked decrease in read range when wet. Low-frequency (LF) tags generally perform better in the presence of water.

• Tag Fixation: Proper attachment of RFID tags to surfaces is essential. Choosing the right fixation method and ensuring maximum contact between the tag and the surface will help maintain the tag’s position, especially under mechanical shock and vibration. For adhesive tags, ensuring full contact is critical to prevent issues related to tag displacement.
