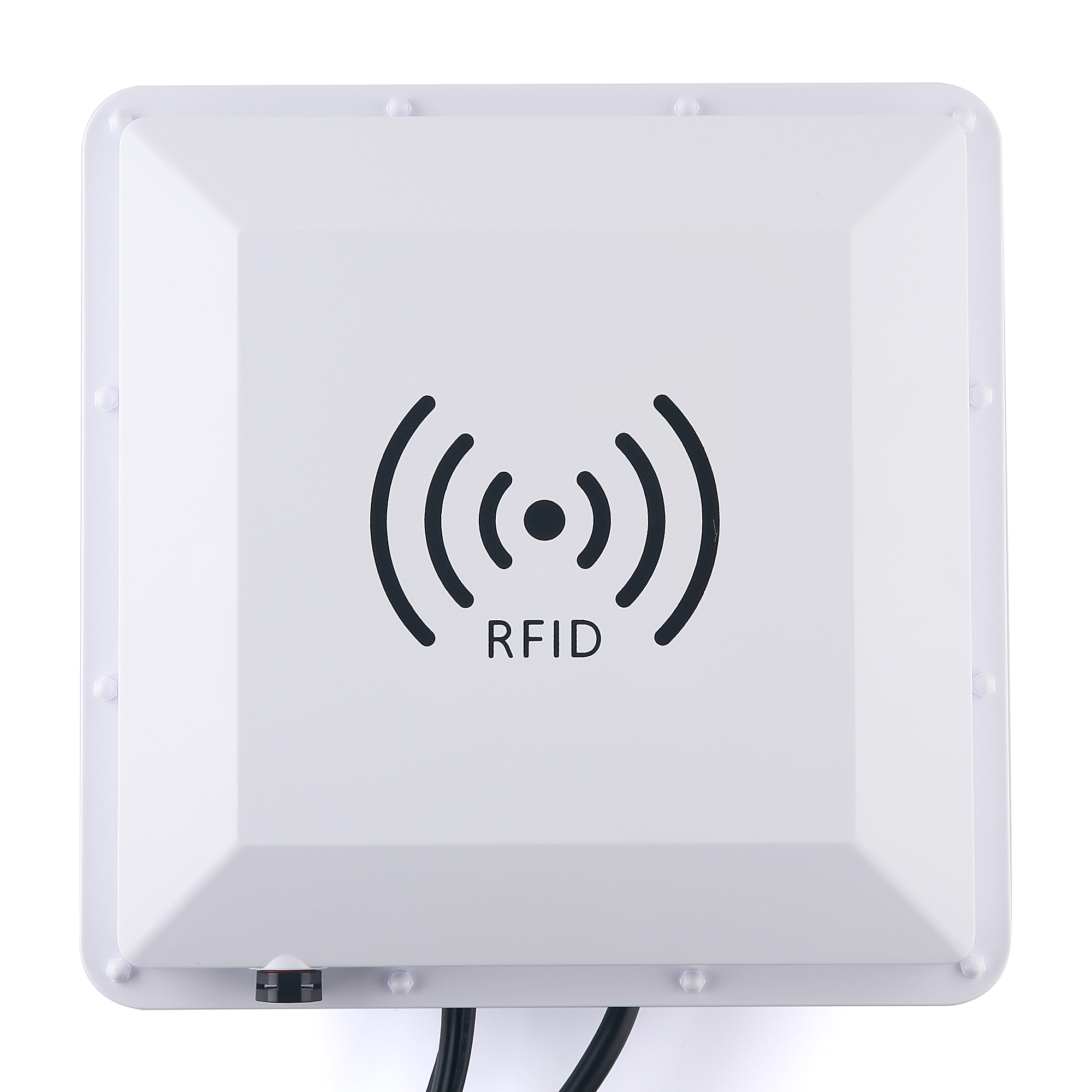

Wireless RFID Reader with 9dBi Integrated Antenna

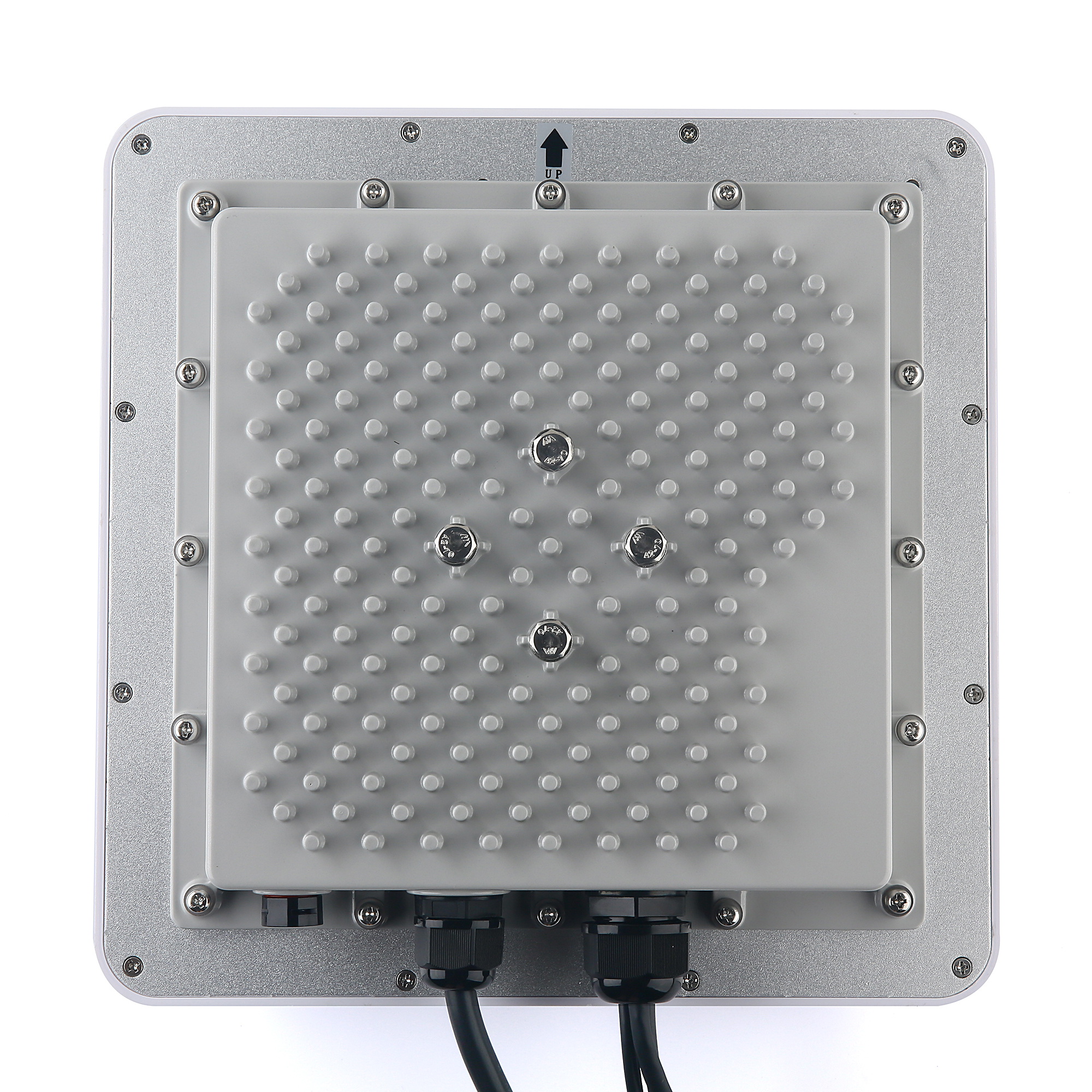

This wireless RFID reader combines WiFi connectivity, a UHF reader, and a built-in 9dBi circularly polarized antenna in one housing for fixed RFID identification.
It supports EPC C1Gen2, ISO/IEC 18000-6C, and IEC 18000-6B compatible tags, with regional UHF frequency options for FCC, ETSI, GB, and Japan.
RF output is adjustable up to 33 dBm, with a specified reading distance of 0–15 meters depending on the RFID tag and installation environment.

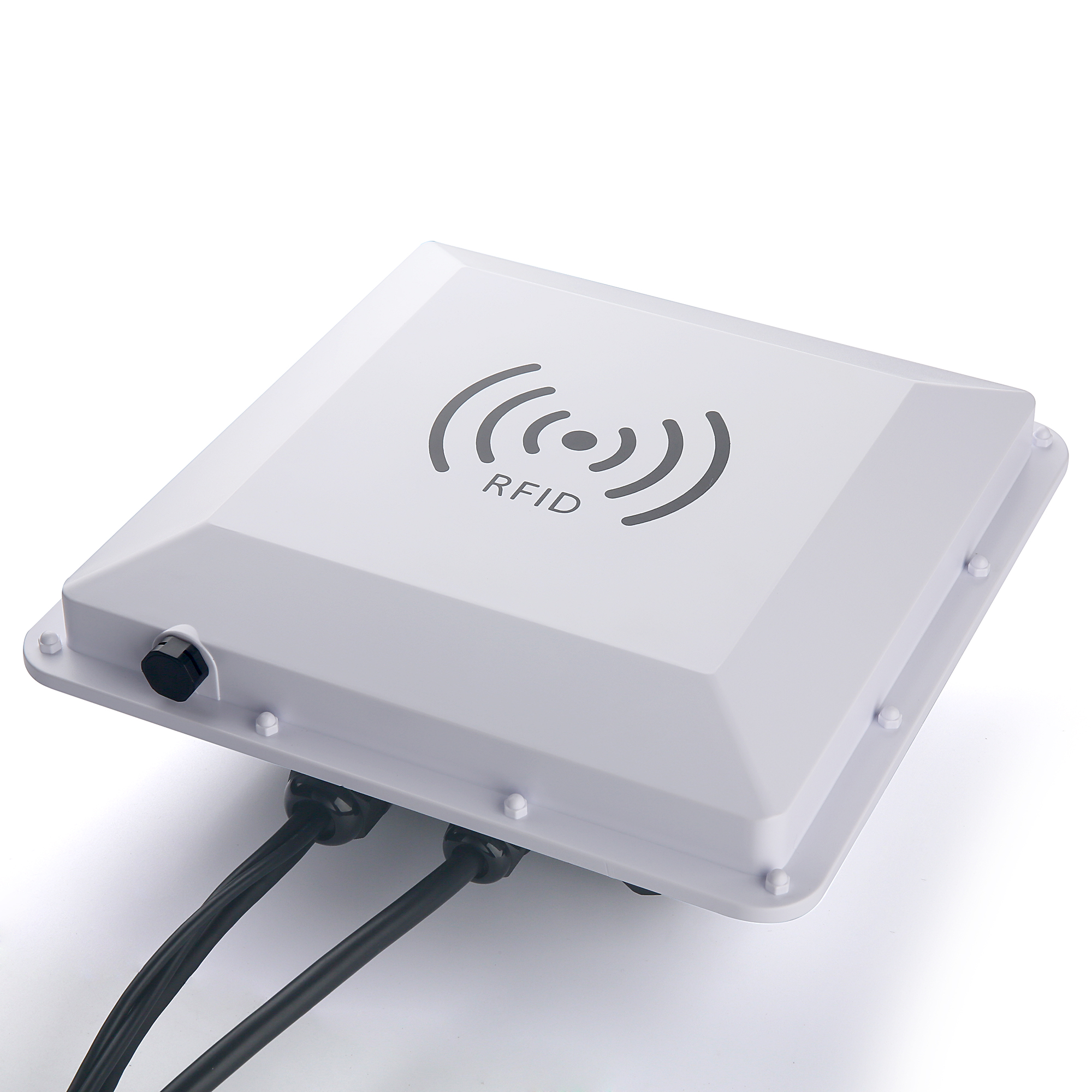

9dBi Integrated Wireless Design
The built-in 9dBi circularly polarized antenna removes the need for a separate external RFID antenna and RF cable.
WiFi provides a wireless data connection option, while TCP/IP, RS232 and RS485 are available for wired system integration.
The reader supports both frequency hopping (FHSS) and fixed-frequency operation, allowing the RF configuration to be matched to different regional and project requirements.
Actual read range depends on tag sensitivity, tag orientation, RF output power, installation position, and the surrounding environment.
Technical Specifications
| Parameter | Specification |
| RFID Protocol | EPC C1Gen2, ISO/IEC 18000-6C, IEC 18000-6B |
| Frequency Options | GB 920–925 MHz / GB 840–845 MHz / FCC 902–928 MHz / ETSI 865–868 MHz / JP 916–920 MHz |
| RF Output Power | ≤33 dBm |
| Read Range | 0–15 m, depending on tag and environment |
| Antenna | Built-in 9 dBi circularly polarized antenna |
| Wireless Connection | WiFi |
| Communication Interfaces | TCP/IP, RS232, RS485 |
| Work Mode | FHSS / fixed frequency |
| Power Supply | DC 12V, power capacity ≥60W |
| Dimensions | 256 × 256 × 89.7 mm |
| Housing Material | Engineering plastic |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Operating Humidity | 5%–90% RH, non-condensing |
Typical Applications
- Vehicle Identification
Suitable for fixed UHF tag reading at parking entrances, vehicle lanes and controlled access points. - Warehouse and Logistics
Can be installed at receiving, transfer and shipping points for automatic RFID tag identification. - Production Automation
TCP/IP, RS232 and RS485 interfaces support connection with fixed production or process-control systems. - Asset Identification
Provides a fixed reading zone for compatible UHF-tagged assets without requiring a separate RFID antenna.
Need a Wireless RFID Reader for Your Project?
Share your RFID tag, required reading distance, installation location and communication requirements. We can help check whether this 9dBi WiFi reader fits your system.
Frequently Asked Question
The top questions about wireless RFID reader
A wireless RFID reader uses a wireless connection such as WiFi to transfer RFID data without relying only on a wired network connection.
The specified reading distance is 0–15 meters. Actual range depends on the tag, RF output power, orientation and installation environment.
No. It includes a built-in 9dBi circularly polarized antenna.
It supports EPC C1Gen2, ISO/IEC 18000-6C and IEC 18000-6B compatible UHF tags.
The reader supports WiFi, TCP/IP, RS232 and RS485 for different system integration requirements.
